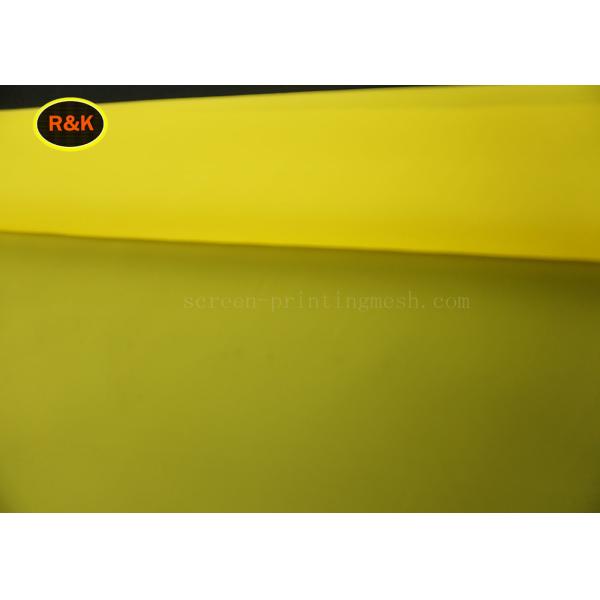

Low Elasticity Monofilament Screen Printing Mesh / Monofilament Polyester Screens
Description
Polyester screen printing network widely used in textile printing, T-shirt printing, ceramics printing, glass printing, printing and other industries.
| Material | Polyester |
| Delivery | Within 3-7days |
| Weave | 1.;1 |
| Length | 3/roll0m |
| Width | 188cm |
Hebei Reking wire mesh co., LTD is located in the famous "silk screen of the township" -- anpingxian industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, owns 10000 grade clean production workshop 1500 square meters, staff 163 people, engineering technical personnel 56 people.Introduce the world's most advanced production line of polyester screen printing, including the Swiss 330 cm p7100 fixture loom, Germany intelligent electronic divider, automatic heat setting machine, washing machine and other 46 equipment. There is a state-of-the-art test facility.
Featuers
Minimum tension loss during stretching.
Due to the stability of fabric tension, the registration rate is improved.
Good anti-static.
No surface treatment.
High tension threshold and breaking point.
High modulus, low elongated single filament polyester yarn.
Specification
| Mesh Count Diameter (Mesh/inch μm) | Mesh Count (Mesh /inch) | We ave | Aper ture (μm) | Opening (%) | Weight | Thickness (μm) | Thickness Tollerance (+/- μm) | Theoretical lnk(g/m^) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 64 | 60 | 300 | 14 | 128 |
| 21-80pw(S) | 55 | 1:1 | 296 | 69 | 35 | 120 | 9 | 79 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 46 | 121 | 260 | 14 | 118 |
| 24-100PW(T) | 60 | 1:1 | 316 | 57 | 81 | 136 | 11 | 65 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 40 | 125 | 195 | 13 | 76 |
| 32-55PW(S) | 81 | 1:1 | 257 | 67 | 28 | 103 | 6 | 67 |
| 32-64PW(S) | 81 | 1:1 | 248 | 63 | 32 | 95 | 6 | 56 |
| 32-100PW(T) | 81 | 1:1 | 212 | 45 | 75 | 165 | 8 | 73 |
| 36-90PW(T) | 92 | 1:1 | 183 | 44 | 68 | 150 | 8 | 65 |
| 39-55PW(S) | 100 | 1:1 | 177 | 56 | 30 | 88 | 6 | 55 |
| 40-80PW(S) | 103 | 1:1 | 166 | 44 | 60 | 133 | 7 | 59 |
Application
Hebei Reking Wire Mesh Co.,Ltd's polyester screen printing performance good, high strength, eye - hole accuracy.High structure strength, good printing resistance, high precision, high dimensional accuracy, good dimensional stability, good resistance, good ink performance;The stability, printing accuracy and structure stability can withstand high tension and low elongation.Long life, in a small net distance, ink stripping performance is good;For all kinds of big billboards, billboards.Printing, printing and dyeing, ceramics, electronic components, glass, industrial filtration, food chemical paper, plastic, silk fiber and other industries.
